3章-線を引く間違った方法「ジェネラティブ・アートーProcessingによる実践ガイド」
「ジェネラティブ・アートーProcessingによる実践ガイド」の3章「線を引く間違った方法」を実践しました。
直線を引くところから始まり、何種類かノイズを扱い、ノイズを加えた線を描きます。
参考書の図3.1~図3.11までを手元で再現した結果になります。
表示される図と実行したソースコードを下に載せておきます。
乱数を使うコードは、ランダム性があるので完全一致はしませんが、目的としている表現はできました。

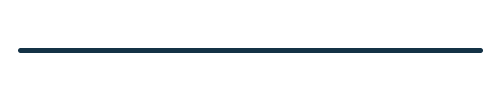

図3.1
ソースコード
void setup(){ size(500, 100); background(255); strokeWeight(5); smooth(); stroke(20, 50, 70); line(20,50,480,50); }
図3.2
ソースコード
void setup(){ size(500, 100); background(255); strokeWeight(5); smooth(); stroke(0, 30); line(20,50,480,50); stroke(20, 50, 70); float randx = random(width); float randy = random(height); line(20,50,randx,randy); }
図3.3
ソースコード
void setup(){ size(500, 100); background(255); strokeWeight(5); smooth(); stroke(0, 30); line(20,50,480,50); stroke(20, 50, 70); int step = 10; float lastx = -999; float lasty = -999; float y = 50; int borderx = 20; int bordery = 10; for(int x=borderx; x<=width-borderx; x+=step){ y = bordery + random(height - 2*bordery); if(lastx > -999){ line(x,y,lastx,lasty); } lastx = x; lasty = y; } }
図3.4
ソースコード
void setup(){ size(500, 100); background(255); strokeWeight(5); smooth(); stroke(0, 30); line(20,50,480,50); stroke(20, 50, 70); float xstep = 10; float ystep = 10; float lastx = 20; float lasty = 50; float y = 50; for(int x=20; x<=480; x+=xstep){ ystep = random(20) - 10; y += ystep; line(x,y,lastx,lasty); lastx = x; lasty = y; } }

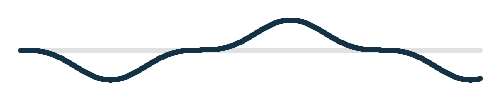

図3.5
ソースコード
void setup(){ size(500, 100); background(255); strokeWeight(5); smooth(); stroke(0, 30); line(20,50,480,50); stroke(20, 50, 70); int step = 10; float lastx = -999; float lasty = -999; float ynoise = random(10); float y; for(int x=20; x<=480; x+=step){ y = 10 +noise(ynoise) * 80; if(lastx > -999){ line(x,y,lastx,lasty); } lastx = x; lasty = y; ynoise += 0.1; } }
図3.61
ソースコード
void setup(){ size(500, 100); background(255); strokeWeight(5); smooth(); stroke(0, 30); line(20,50,480,50); stroke(20, 50, 70); int step = 10; float lastx = -999; float lasty = -999; float ynoise = random(10); float y; for(int x=20; x<=480; x+=step){ y = 10 +noise(ynoise) * 80; if(lastx > -999){ line(x,y,lastx,lasty); } lastx = x; lasty = y; ynoise += 0.3; } }
図3.7
ソースコード
void setup(){ size(500, 100); background(255); strokeWeight(5); smooth(); stroke(0, 30); line(20,50,480,50); stroke(20, 50, 70); float xstep = 1; float lastx = -999; float lasty = -999; float angle = 0; float y = 50; for(int x=20; x<=480; x+=xstep){ float rad = radians(angle); y = 50 + (sin(rad) * 40); if(lastx > -999){ line(x,y,lastx,lasty); } lastx = x; lasty = y; angle++ ; } }
図3.8
ソースコード
void setup(){ size(500, 100); background(255); strokeWeight(5); smooth(); stroke(0, 30); line(20,50,480,50); stroke(20, 50, 70); float xstep = 1; float lastx = -999; float lasty = -999; float angle = 0; float y = 50; for(int x=20; x<=480; x+=xstep){ float rad = radians(angle); y = 50 + (cos(rad) * 40); if(lastx > -999){ line(x,y,lastx,lasty); } lastx = x; lasty = y; angle++ ; } }
図3.9
ソースコード
void setup(){ size(500, 100); background(255); strokeWeight(5); smooth(); stroke(0, 30); line(20,50,480,50); stroke(20, 50, 70); float xstep = 1; float lastx = -999; float lasty = -999; float angle = 0; float y = 50; for(int x=20; x<=480; x+=xstep){ float rad = radians(angle); y = 50 + (pow(sin(rad), 3) * 30); if(lastx > -999){ line(x,y,lastx,lasty); } lastx = x; lasty = y; angle++ ; } }
図3.10
ソースコード
void setup(){ size(500, 100); background(255); strokeWeight(5); smooth(); stroke(0, 30); line(20,50,480,50); stroke(20, 50, 70); float xstep = 1; float lastx = -999; float lasty = -999; float angle = 0; float y = 50; for(int x=20; x<=480; x+=xstep){ float rad = radians(angle); y = 50 + (pow(sin(rad), 3) * noise(rad*2) * 30); if(lastx > -999){ line(x,y,lastx,lasty); } lastx = x; lasty = y; angle++ ; } }

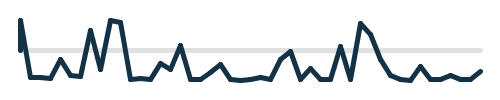

図3.11
ソースコード
void setup(){ size(500, 100); background(255); strokeWeight(5); smooth(); stroke(0, 30); line(20,50,480,50); stroke(20, 50, 70); float xstep = 10; float lastx = 20; float lasty = 50; float y = 50; for(int x=20; x<=480; x+=xstep){ y = 20 + (customRandom() * 60); line(x,y,lastx,lasty); lastx = x; lasty = y; } } float customRandom() { float retValue = 1 - pow(random(1), 5); return retValue; }
-
恐らく、参考書に誤記があって、ynoiseの増加分は「0.03」ではなく「0.3」だと思われます。値を大きくするとノイズが増えるので↩
